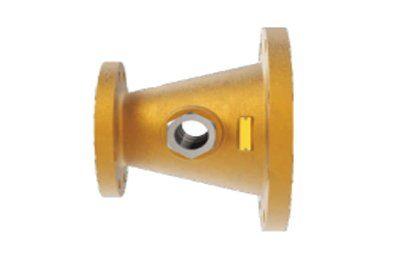

WEFLO Waste Cone FIG.8103
Specifications:
- Available for Onshore and Offshore Applications.
- Manufactured in Accordance with NFPA20 Requirements.
- Designed for use with UL/FM Approved Fire Pump Pressure Relief Valves.
- Flanges to A N S I Class 150/300, Other available on request.
- Ductile lron-ASTMA536-65.
- (2)2″316 SS Sight Glasses per Waste Cone.
- Single Body Casting(No Welding).
