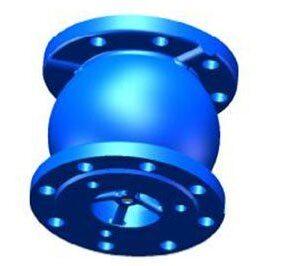

WEFLO Silent Check Valve FIG.5104A – 5105A
Specifications:
- The design is for liquid service and offers many obvious advantages when compared with conventional swing check valve.
- Spring automatically closes disc at zero flow before flow reversal occurs. This prevents surge and water hammer. Completely guided disc both top and bottom.
- Perfect tightness soft sealed even at low differential pressure.
- Flanged and drilling complies with EN 1092-2 PN10/ 16; ANSI B 16.1Class125.
