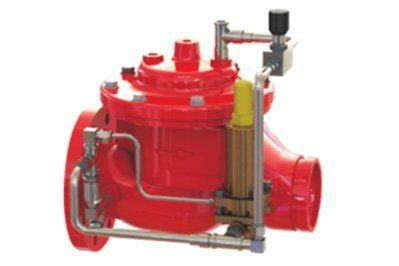

WEFLO Pressure Relief Valve FL x Gr Ends FIG.F1319
Specifications:
Relief Valve: Limits inlet pressure by relieving excess pressure. Pressure sustaining: Prevents pipe line pressure from rising to a maximum valve.
Operates over a Wide Flow Range.
*Inlet Pressure Adjustment Range:65-300psi.
Quick opening and adjustable closing speed. Flanged to EN 1092-2 PN16,ANSlClass125/150/250.(Other available on request)
e Grooved Ends to AWWA C606 Standard.
*Rated Working Pressure 300 psi.
UL 1478 Listed and FM 1361 Approved.
Description
Reviews (0)
Shipping & Delivery
Related products
WEFLO Double Orifice Air Relief Valve FIG.9106
Specifications
Dual air release vents the accumulated small volumes of air during normal system operation.
Allows inflow of large volumes of air during draining of the pipeline.
Allows venting of large volumes of air during filling of the pipeline.
Provides protection from pipeline collapse due to vacuum.
Flange and drilling to ANSI B16.1 Class125.(Other flange types available upon request)
Rated Working Pressure 300 psi.
.UL Listed.
WEFLO C509 OS&Y Resilient Seated Gate Valve,FL x PO Ends & PO x PO Ends FIG.F1711-300
Specifications :
Meet or exceed the requirements of AWWA C509 Standard.
Full Waterway.
Robust Design.
Adjustable Packing
Rubber Fully Encapsulated Ductile iron Wedge.
Handwheel-open left or open right.
Face to Face Dimension complies with ASME B16.10.Flange and Drilling comply with ASTM B16.1 Class 125Push-on Joints Outlet complies with ANS!/AWWAC110/A21.10 Standard.
Rated Working Pressure: 300 psi.
WEFLO Pressure Relief Valve FL x Gr FIG.F1349
Specifications:
- Relief Valve: Limits inlet pressure by relieving excess pressure.
- Pressure sustaining: Prevents pipe line pressure from rising toa maximum valve.
- Operates over a Wide Flow Range.
- Inlet Pressure Adjustment Range:65~300psi.
- Quick opening and adjustable closing speed.
- Flanged to EN 1092-3 PN16,ANSI Class150/300(Other available on request)
- Grooved Ends to AWWA C606 Standard.
- Rated Working Pressure 300 psi.
- UL1478 Listed and FM 1361Approved,
WEFLO Pressure Relief Valve FL x FL FIG.F1349
Specifications:
- Relief Valve: Limits inlet pressure by relieving excess pressure.
- Pressure sustaining: Prevents pipe line pressure from rising toa maximum valve.
- Operates over a Wide Flow Range.
- Inlet Pressure Adjustment Range:65~300psi.
- Quick opening and adjustable closing speed.
- Flanged to EN1092-3 PN16,ANS| Class150/300.(Other available on request)
- Rated Working Pressure 300 psi.
- UL1478 Listed and FM 1361Approved.
WEFLO Pressure Relief Valve Gr x Gr Ends FIG.F1319
Specifications
Relief Valve: Limits inlet pressure by relieving excess pressure.
Pressure sustaining: Prevents pipe line pressure from rising to a maximum valve.
Operates over a Wide Flow Range.
*Inlet Pressure Adjustment Range: 65-300psi.
Quick opening and adjustable closing speed.
*Grooved Ends to AWWA C606 Standard.
Rated Working Pressure 300 psi.
UL 1478 Listed and FM 1361 Approved.
WEFLO Angle Fire Pump Relief Valve Gr x Gr Ends F1329
Specifications:
Grooved Ends to AWWA C606 Standard.
Opens quickly; maintains pressure within close limits.
Wide rangeadjustable:65psi-300psi(4.5 bar-21 bar).
Pilot operated main valve.
Reduced cavitation design.
Simple field adjustable pressure setting, requiring no special tools or system down time.
Closes gradually for surge-free operation.
UL1478 Listed andFM1361 Approved.
WEFLO C515 NRS Resilient Seated Gate Valve 14“-24” FIG.F1211-300
Specifications :
Multiple End TypesF1211-300:Flange by FlangeF0213-300:Flange by MJF0233-300:MJ by MJ
Meet or exceed the requirements of AWWA C515 Standard.
Full Waterway.
Triple O-Ring Stem Seal.
Ductile-Iron Wedge, EPDM Encapsulated.
Operated with handwheel or operating nut.
Flanged to ASME B16.1 Class 125.
Other Flange Types available upon request. Mechanical Joint Outlets comply withANSIAWWAC153/A21.53Rated Working Pressure: 300 psi.
UL/ULC Listed and FM Approved.
WEFLO Backflow Preventers – Double Check Valve FIG.F5410
PRODUCT FEATURES :
- A double check valve is a testable device designed for use in 'medium hazard conditions to prevent backflow caused by back-siphonage or back-pressure. It is intended for use under continuous pressure conditions. The DCV have two check modules.
- Multiple Ends Types: Flange by Flange, Flange by Groove, Groove by Groove.
- Pressure Rating:175psi/12bar
- Working Temperature: Cold Water, not exceeding 60°C.
- Horizontal only. UL/ ULC Listed.
