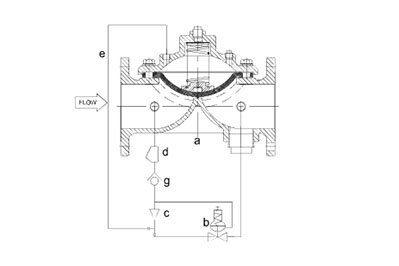

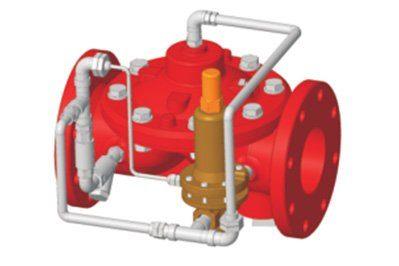

WEFLO Pressure Reducing Valve FIG.F1321-300
Specifications
Multiple End Types for Main Valve:

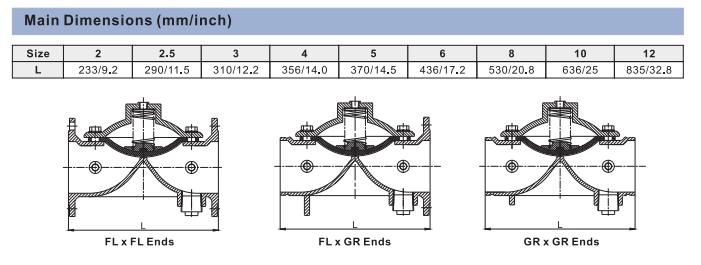

Flange by Flange, Flange by Groove, Groove by Groove. Pressure Relief Valve:
Limits pipe line pressure by release excess pressure.
Pressure sustaining: Prevents pipe line pressure from rising to a maximum value.
Operates over a wide flow range.*Inlet pressure adjustment range: 65~180psi.Can be maintained without removal from the pipe line.
Flanged to EN1092-2 PN10/PN16,ANSI B16.1 Class125(Other available on request)
Grooved ends to AWWA C606 Standard.
Rated Working Pressure: 300 psi.
Adjustment Range of Set Pressure: 65 to 180 psi.Fusion Bonded Epoxy Coated Interior and Exterior to AWWAC550 Standard.FM 1361 Approved.CNBOP Certified.
