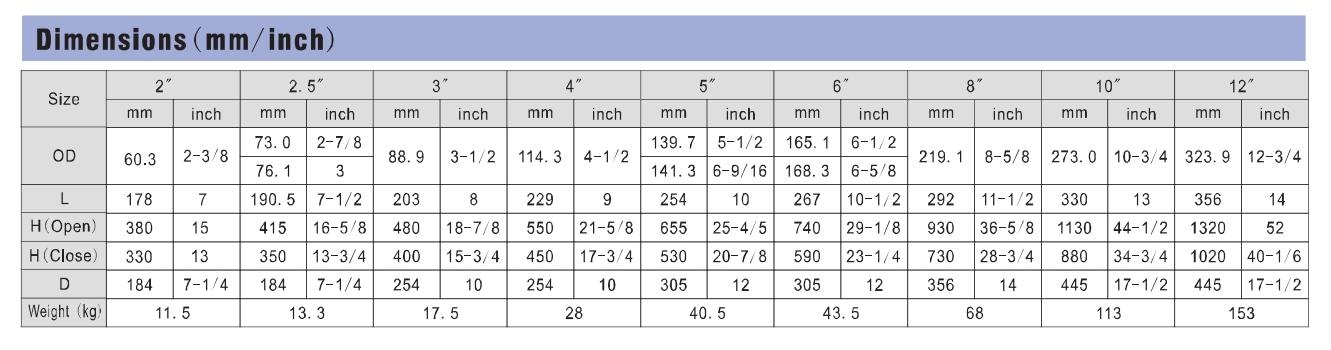

WEFLO OS& amp; Y Resilient Seated Gate Valve Groove Ends，300 PSI FIG.F0122-300
Specifications :
- Complies with AWWA C 515 Standard.
- Heavy duty handwheel and attachment nut.
- High quality graphite stem seal .
- NPT plug on body .
- Groove Ends to AWWA C606 Standard or Metric Dimensions.
- UL Listed and FM Approved.
- ULC Listed 2.5 “12 “
- GOST Certification.
Description
Reviews (0)
Shipping & Delivery
Related products
WEFLO Pressure Reducing Valve FLxFL Ends FIG.F1318
Specifications :
Reducing Valve: Reduces a higher inlet pressure to a lower out.
let pressure.
Constant Outlet Pressure over Wide Flow Range.
Pilot-operated main valve not subject to pressure fall off..
Outlet Pressure is adjustable with single screw.
Adjustable Opening/Response Speed.
Stabilized regulation at near-zero flow.
Flanged Ends to EN1092-2PN16,ANSI Class125/150/250.
(Other available on request)
UL1739 listed.
3C Certified.
Enamel Paint or Fusion Bonded Epoxy Coated Interior and Exterior.
WEFLO Angle Fire Pump Relief Valve FL x FL Ends F1329
Specifications:
Flanged to EN 1092-2 PN16,ANSI Class125/150/250.
(Other available on request)
Opens quickly: maintains pressure within close limits.
Wide range adjustable:65psi-300psi(4.5 bar -21 bar).
Pilot operated main valve.
Reduced cavitation design.
Simple field adjustable pressure setting, requiring no special tools or system down time.
Closes gradually for surge-free operation.
UL 1478 Listed and FM 1361 Approved.
*Limits maximum pump discharge pressure.
*Factory tested & preset to requirements.
Applicable forwater, foam.
300psi(21bar)high Working Pressure
600psi(42bar)Hydrostatic Test
Fusion Bonded Epoxy Coated Interior and Exterior toAWWA C550 Standard.
WEFLO Pressure Relief Valve FL x FL FIG.F1349
Specifications:
- Relief Valve: Limits inlet pressure by relieving excess pressure.
- Pressure sustaining: Prevents pipe line pressure from rising toa maximum valve.
- Operates over a Wide Flow Range.
- Inlet Pressure Adjustment Range:65~300psi.
- Quick opening and adjustable closing speed.
- Flanged to EN1092-3 PN16,ANS| Class150/300.(Other available on request)
- Rated Working Pressure 300 psi.
- UL1478 Listed and FM 1361Approved.
WEFLO Angle Fire Pump Relief Valve FL x FL Ends FIG.F1339
Specifications :
- Flanged to EN 1092-3 PN 16, ANSI Class 150/300. (Other available on request)
- Opens quickly: maintains pressure within close limits.
- Wide range adjustable: 65 psi-300 psi (4.5 bar - 21 bar).
- Pilot operated main valve.
- Reduced cavitation design.
- Simple field adjustable pressure setting, requiring no special tools or system down time.
- Limits maximum pump discharge pressure.
- Factory tested & preset to requirements.
- Applicable for water, sea water & foam.
- 300psi (21bar) high Working Pressure 600 psi (42bar) Hydrostatic Test
- Closes gradually for surge-free operation.
- UL 1478 Listed and FM 1361 Approved.
WEFLO Sing Orifice Air Relief Valve FIG.9105
Specifications:
Provides the functions of both Air Release and Air / Vacuum Valves.
Exhausts large quantities of air at system start-up.
Provides protection from pipeline collapse due to vacuum.
Incorporates both features within one valve, More compact and economical.
Flange and drilling to A N S I B16. 1 Class125(Other flange types available upon request) e Rated Working Pressure 300 psi.
UL Listed.
WEFLO Grooved Butterfly Valve. Gear operated- F1022-300 CNPP
Specifications:
Meet or exceed the requirements of EN 593 and MSS SP-67 Standard.
Vulcanized Disc Design for Bubble-Tight Shutoff.
Outdoor and Indoor rated.
Flag Type Position Indicator.
Built-in Supervisory Switch.
Grooved Ends Dimensions meet AWWA C606 Standard or other IPS Pipe.
Face to Face Dimension complies with MSS SP-67
CNPP Certified.
Rated Working Pressure 300 psi.
WEFLO C515 NRS Resilient Seated Gate Valve 14“-24” FIG.F1211-300
Specifications :
Multiple End TypesF1211-300:Flange by FlangeF0213-300:Flange by MJF0233-300:MJ by MJ
Meet or exceed the requirements of AWWA C515 Standard.
Full Waterway.
Triple O-Ring Stem Seal.
Ductile-Iron Wedge, EPDM Encapsulated.
Operated with handwheel or operating nut.
Flanged to ASME B16.1 Class 125.
Other Flange Types available upon request. Mechanical Joint Outlets comply withANSIAWWAC153/A21.53Rated Working Pressure: 300 psi.
UL/ULC Listed and FM Approved.
