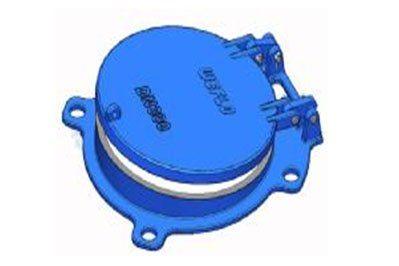

WEFLO Flap Valve Fig.5218
Specifications :
WEFLO flap valve are made of ductile iron. A small differential pressure on the back of the gate causes it to open automatically to allow discharge through scours, sewer lines or drainage conduits. When water on the face side of the gate rises above water on the back side, the gate closes automatically to prevent backflow.
