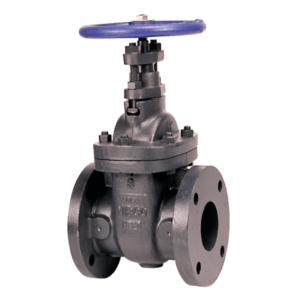

NIBCO Gate Valve - Class 125, Cast Iron, All Iron Trim, Flanged-FIG No-F-619-N
Click to enlarge
NIBCO Gate Valve - Class 125, Cast Iron, All Iron Trim, Threaded-FIG No-T-617-ON
NIBCO Gate Valve - Class 125, Cast Iron, All Iron Trim, Threaded-FIG No-T-617-ON
Back to products
NIBCO Gate Valve - Class 125, Cast Iron, All Iron Trim, Flanged-FIG No-F-619-N
NIBCO Gate Valve - Class 125, Cast Iron, All Iron Trim, Flanged-FIG No-F-617-ON

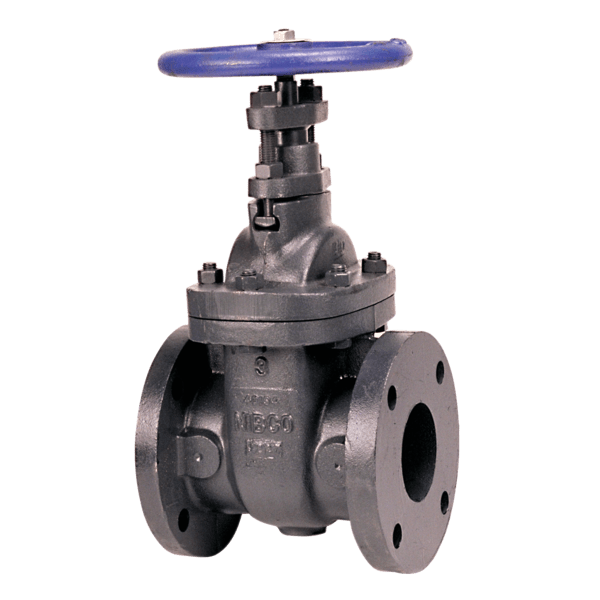

NIBCO Gate Valve – Class 125, Cast Iron, All Iron Trim, Flanged-FIG No-F-619-N

  • 125 psi/8.6 bar saturated steam to 353°F/178°C
  • 200 psi/13.8 bar non-shock cold working pressure
  • Non-rising stem
  • Bolted bonnet
  • Solid wedge
  • Class 125 flanged end connections
  • Use in U.S. drinking water applications is prohibited after January 3, 2014
  • Conforms to MSS SP-70
Description

FIG No-F-619-N

The NIBCO® cast iron gate valve with all iron trim provides full flow with minimal pressure drop. The gate valve features a Class 125 flanged, flat face end connection for easy installation and accessibility. The iron body bronze mounted (IBBM) valve has a bolted bonnet and non-rising stem.
