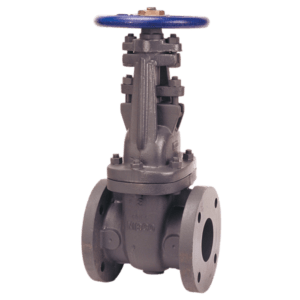

NIBCO Gate Valve – Class 125, Cast Iron, All Iron Trim, Flanged-FIG No-F-617-ON

125 psi/8.6 bar saturated steam to 353°F/178°C
200 psi/13.8 bar non-shock cold working pressure
Bolted bonnet
Solid wedge
Outside screw and yoke
Iron body, all iron trim
Class 125 flanged flat face end connections
Use in U.S. drinking water applications is prohibited after January 3, 2014
Conforms to MSS SP-70

FIG No-F-617-ON

The NIBCO® cast iron gate valve with all iron trim provides full flow with minimal pressure drop. The cast iron gate valve features a Class 125 flanged, flat face end connection for easy installation and accessibility. Outside screw and yoke (OS&Y) gate valves are recommended when positive shutoff and a quick visual indicator of open/closed position is required. The OS&Y configuration protects the stem threads from contact with the media.
