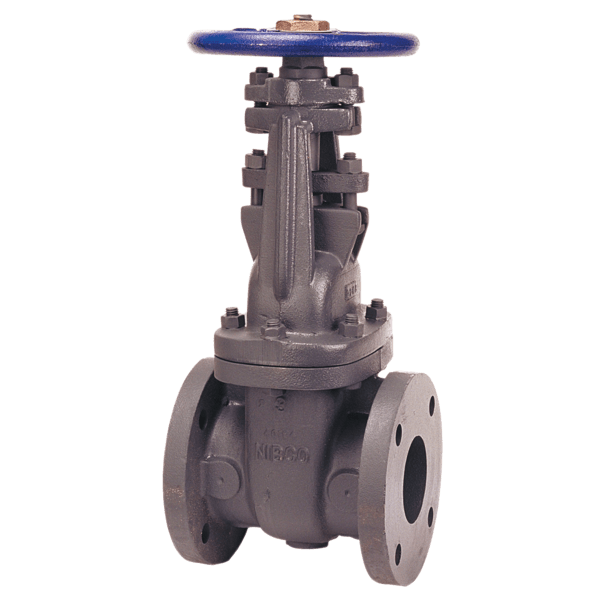

NIBCO Gate Valve – Class 125, Cast Iron, All Iron Trim, Flanged-F-617-ON

100 psi/6.9 bar saturated steam to 338°F/170°C
150 psi/10.3 bar non-shock cold working pressure
Cast Iron Class 125 flanged
Outside screw and yoke
Bolted bonnet
Solid wedge
All iron trim
Class 125 flanged end connections
Use in U.S. drinking water applications is prohibited after January 3, 2014
Conforms to MSS SP-70

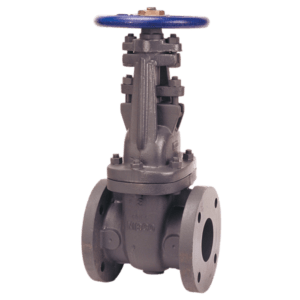

FIG No-F-617-ON Large Diameter

The NIBCO® cast iron large diameter gate valve with all iron trim provides full flow with minimal pressure drop. The cast iron gate valve features a Class 125 flanged, flat face end connection for easy installation and accessibility. Outside screw and yoke (OS&Y) gate valves are recommended when positive shutoff and a quick visual indicator of open/closed position is required. The OS&Y configuration protects the stem threads from contact with the media.
