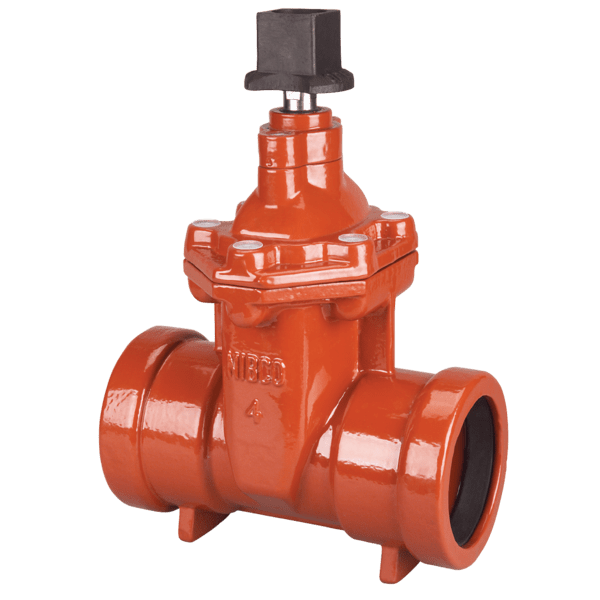

FIG No-P-619-RW
The NIBCO® resilient wedge cast iron gate valve provides full flow with minimal pressure drop and positive shutoff. The NIBCO® cast iron gate with valve may be used with confidence in water works and irrigation services.
NIBCO Gate Valve – Cast Iron, Irrigation, PVC End Connections-FIG No-P-619-RW
- 250 psi/17.2 bar non-shock cold working pressure
- Maximum operating temperature of 160ºF/71ºC
- Non-rising stem
- Bolted bonnet
- Resilient wedge
- Fusion bonded epoxy coated body (NSF and FDA certified)
- IPS Push-on end connections
- Meets or exceeds performance requirements of AWWA C509 and C515 for 3″ and larger valves
