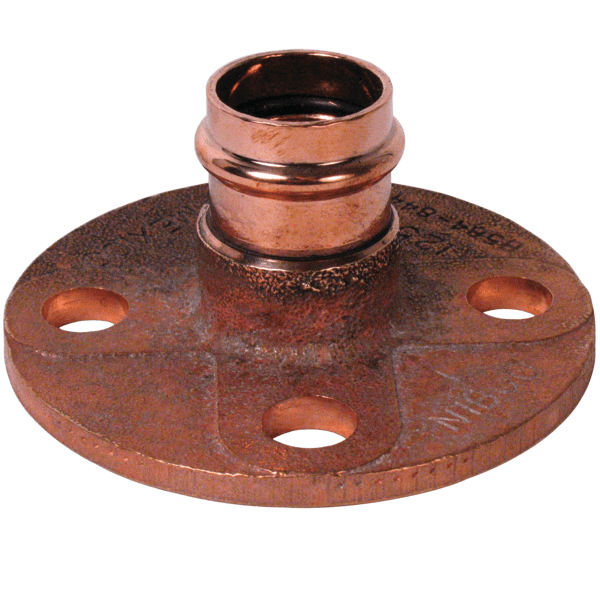

NIBCO Companion Flange P x Flange – Cast Bronze Flange Wrot Copper Outlet-FIG No-PC741

Pressure Temperature Limits: Maximum Pressure 105 psi cwp; 90 psi @ 250°F. These limits are in accordance with MSS SP-106 which governs Cast Copper Alloy Flanges and Flanged Fittings: Class 125, 150, and 300.
Wrot copper outlet
Cast bronze flange
Dezincification resistant
Use in U.S. drinking water applications is prohibited after January 3, 2014
ASTM B584 C84400 brass
ASTM B75 Alloy C12200 Copper
Third party certified to the performance requirements of CSA MSE 13 and PS-117

FIG No-PC741

The NIBCO® Press System® companion flange features an inboard bead and EPDM O-ring. Simply applying pressure from a pressing tool tightens the O-ring onto the tube, ensuring a clean, watertight seal in seconds with no flame, solder or flux. The companion flange has a copper press connection and flanged end connection. The fitting provides a method for adapting a press connection to a flange connection.
