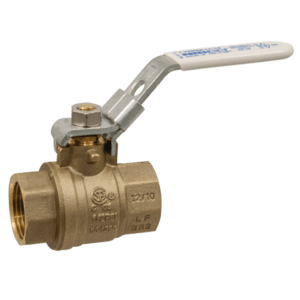

The NIBCO® lead-free* brass ball valve with solder end connections provides bubble-tight shutoff. The valve’s PTFE seats and lead-free* ball exhibit high corrosion resistance properties. The valve is ideal for hot/cold water applications.
NIBCO Ball Valve Lead Free Brass, Two-Piece, Full Port, C x C-FIG NO-S-FP600A-LF
- Valve pressure rating 600 psi/41.4 bar non-shock cold working pressure (3/8″ to 2″)
- Valve pressure rating 400 psi/27.6 bar non-shock cold working pressure (2-1/2″ to 3″)
- Full port
- Blowout-proof stem
- Standard lever handle
- Female solder cup end connections
- IAPMO listed to NSF/ANSI-61-8, NSF/ANSI-372 and UPC-IGC-157
Description
Reviews (0)
Shipping & Delivery
Related products
WEFLO Pressure Relief Valve Gr x Gr Ends FIG.F1319
Specifications
Relief Valve: Limits inlet pressure by relieving excess pressure.
Pressure sustaining: Prevents pipe line pressure from rising to a maximum valve.
Operates over a Wide Flow Range.
*Inlet Pressure Adjustment Range: 65-300psi.
Quick opening and adjustable closing speed.
*Grooved Ends to AWWA C606 Standard.
Rated Working Pressure 300 psi.
UL 1478 Listed and FM 1361 Approved.
WEFLO Wafer Butterfly Valve Gear Operated F0811-300 CNPP
Specifications:
Meet or exceed the requirements of EN 593 and MSS SP-67 Standard.
Single Piece Through Shaft.
Splined Drive.
e Outdoor and Indoor rated.
Vulcanized Seat Design for Bubble-Tight Shutoff.
Flag Type Position indicator.
e Built-in Supervisory Switch.
Face to Face Dimension complies with ASME B16.10 Narrow and EN558 Series 20.
Connected Flange complies with ASME B16.5 Class 150 andEN1092 PN10/16.(Other Flange Types available upon request)®CNPP Certified.
Rated Working Pressure 300 psi.
WEFLO Pressure Reducing Valve FLxFL Ends FIG.F1318
Specifications :
Reducing Valve: Reduces a higher inlet pressure to a lower out.
let pressure.
Constant Outlet Pressure over Wide Flow Range.
Pilot-operated main valve not subject to pressure fall off..
Outlet Pressure is adjustable with single screw.
Adjustable Opening/Response Speed.
Stabilized regulation at near-zero flow.
Flanged Ends to EN1092-2PN16,ANSI Class125/150/250.
(Other available on request)
UL1739 listed.
3C Certified.
Enamel Paint or Fusion Bonded Epoxy Coated Interior and Exterior.
WEFLO Grooved Butterfly Valve. Gear operated- F1022-300 CNPP
Specifications:
Meet or exceed the requirements of EN 593 and MSS SP-67 Standard.
Vulcanized Disc Design for Bubble-Tight Shutoff.
Outdoor and Indoor rated.
Flag Type Position Indicator.
Built-in Supervisory Switch.
Grooved Ends Dimensions meet AWWA C606 Standard or other IPS Pipe.
Face to Face Dimension complies with MSS SP-67
CNPP Certified.
Rated Working Pressure 300 psi.
WEFLO Pressure Relief Valve Gr x Gr FIG.F1349
Specifications:
- Relief Valve: Limits inlet pressure by relieving excess pressure.
- Pressure sustaining: Prevents pipe line pressure from rising toa maximum valve.
- Operates over a Wide Flow Range.
- Inlet Pressure Adjustment Range:65~300psi.
- Quick opening and adjustable closing speed.
- Grooved Ends to AWWA C606 Standard.
- Rated Working Pressure 300 psi.
- UL1478 Listed and FM 1361 Approved.
WEFLO C509 OS&Y Resilient Seated Gate Valve,FL x PO Ends & PO x PO Ends FIG.F1711-300
Specifications :
Meet or exceed the requirements of AWWA C509 Standard.
Full Waterway.
Robust Design.
Adjustable Packing
Rubber Fully Encapsulated Ductile iron Wedge.
Handwheel-open left or open right.
Face to Face Dimension complies with ASME B16.10.Flange and Drilling comply with ASTM B16.1 Class 125Push-on Joints Outlet complies with ANS!/AWWAC110/A21.10 Standard.
Rated Working Pressure: 300 psi.
WEFLO Swing Check Valve, Flanged Ends FIG.F1322
Specifications
Meet or exceed the requirements of AWWA C508 Standard.
Full Waterway.
Disc is fully encapsulated with EPDM rubber.
Superior design featuring exceptionally low pressure losses at high flow rates.
Disassembly of the valve can be performed without removing the valve from the pipe system by unscrewing the bonnet bolts. Face to face dimensions according to ASME B16.10.Flanged to ASME B16.1 Class 125,EN 1092-2 PN16.Other flange types are available on request. Rated Working Pressure: 350 psi. UL/ULC Listed and FM Approved.
ANSI/NSF61&372 Certified.
WEFLO Angle Fire Pump Relief Valve Gr x Gr Ends F1329
Specifications:
Grooved Ends to AWWA C606 Standard.
Opens quickly; maintains pressure within close limits.
Wide rangeadjustable:65psi-300psi(4.5 bar-21 bar).
Pilot operated main valve.
Reduced cavitation design.
Simple field adjustable pressure setting, requiring no special tools or system down time.
Closes gradually for surge-free operation.
UL1478 Listed andFM1361 Approved.
