The Chemtrol True Union ball check valve stops the flow of media in one direction while allowing flow in the opposite direction, with minimum turbulence and chatter while maintaining pump prime. The valve’s injection molded polypropylene construction with FKM O-ring is ideal for use with hot corrosive liquids, chemical processing, industrial plating, laboratory and industrial waste drainage systems, and waste treatment systems.

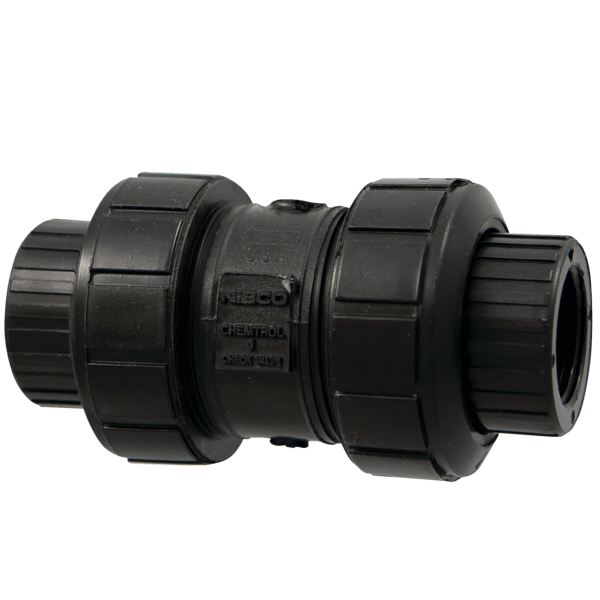

NIBCO Ball Check Valve – Threaded, True Union, Black PP, FKM-FIG NO- T61BC-V
- Valve pressure rating 20 psi at 73°F water-non-shock
- Maximum service temperature 180°F
- True Union design
- FKM O-ring
- Female NPT threaded end connections
- Do not use or test with compressed air or other gases
- ASTM D4101 material
Description
Reviews (0)
Shipping & Delivery
Related products
WEFLO C515 NRS Resilient Seated Gate Valve 14“-24” FIG.F1211-300
Specifications :
Multiple End TypesF1211-300:Flange by FlangeF0213-300:Flange by MJF0233-300:MJ by MJ
Meet or exceed the requirements of AWWA C515 Standard.
Full Waterway.
Triple O-Ring Stem Seal.
Ductile-Iron Wedge, EPDM Encapsulated.
Operated with handwheel or operating nut.
Flanged to ASME B16.1 Class 125.
Other Flange Types available upon request. Mechanical Joint Outlets comply withANSIAWWAC153/A21.53Rated Working Pressure: 300 psi.
UL/ULC Listed and FM Approved.
WEFLO Pressure Relief Valve FL x Gr FIG.F1349
Specifications:
- Relief Valve: Limits inlet pressure by relieving excess pressure.
- Pressure sustaining: Prevents pipe line pressure from rising toa maximum valve.
- Operates over a Wide Flow Range.
- Inlet Pressure Adjustment Range:65~300psi.
- Quick opening and adjustable closing speed.
- Flanged to EN 1092-3 PN16,ANSI Class150/300(Other available on request)
- Grooved Ends to AWWA C606 Standard.
- Rated Working Pressure 300 psi.
- UL1478 Listed and FM 1361Approved,
WEFLO OS&Y Resilient Seated Gate Valve,Flanged Ends & Grooved Ends FIG.F0199
Specifications:
Adjustable Packing.
Ductile-Iron Wedge, EPDM Encapsulated.
Face to Face Dimensions to ANSI/ASME B16.10,EN558,Series 3.
Flanges can be drilled toANSlB16.1 Class 125,ASME B16.42Class 150,AS 2129 Table E.
Flat Faced Standard, Raised Face Upon Request.
Grooved Ends to AWWAC606 Standard.
UL/ULC Listed/FM Approved @ 300 psi rating
3C Certified.
WEFLO Adjustable Relief Valve FIG.F1329
General Description
F1329 bronze adjustable relief valve is rated for up to 310 psi. The adjustable relief valve allows for the required NFPA field hydrostatic testing to be accomplished without removing and/or plugging the outlet for the relief valve. Note: Visual calibration lines on valve are used for approximate adjustment, must verify pressure setting with pressure gauge.
WEFLO Angle Fire Pump Relief Valve Gr x Gr Ends F1329
Specifications:
Grooved Ends to AWWA C606 Standard.
Opens quickly; maintains pressure within close limits.
Wide rangeadjustable:65psi-300psi(4.5 bar-21 bar).
Pilot operated main valve.
Reduced cavitation design.
Simple field adjustable pressure setting, requiring no special tools or system down time.
Closes gradually for surge-free operation.
UL1478 Listed andFM1361 Approved.
WEFLO Pressure Relief Valve FL x Gr Ends FIG.F1319
Specifications:
Relief Valve: Limits inlet pressure by relieving excess pressure. Pressure sustaining: Prevents pipe line pressure from rising to a maximum valve.
Operates over a Wide Flow Range.
*Inlet Pressure Adjustment Range:65-300psi.
Quick opening and adjustable closing speed. Flanged to EN 1092-2 PN16,ANSlClass125/150/250.(Other available on request)
e Grooved Ends to AWWA C606 Standard.
*Rated Working Pressure 300 psi.
UL 1478 Listed and FM 1361 Approved.
