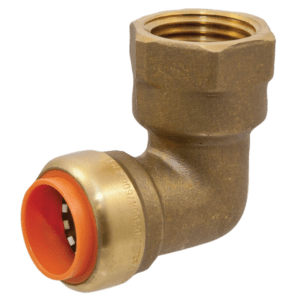

NIBCO 90° Drop Elbow P x F – Lead-Free Cast Bronze-FIG No-PC707-3-5-LF

Operating pressure 200 psi cwp
Temperature range -20°F to 250°F
Lead-free
Dezincification resistant
ASTM B584 C87600 cast silicon bronze
NSF/ANSI/CAN-61
Third party certified to UPC
Third party certified to the performance requirements of CSA MSE 13 and PS-117

FIG No-PC707-3-5-LF

The NIBCO® Press System® lead free cast bronze 90-degree drop elbow features an inboard bead and EPDM O-ring. Simply applying pressure from a pressing tool tightens the O-ring onto the tube, ensuring a clean, watertight seal in seconds with no flame, solder or flux. The drop elbow has a press connection, a female NPT thread connection, and mounting ears. The fitting provides a method of changing the pipeline direction 90 degrees between a press connection and a threaded connection. The ears allow the fitting to be secured to a wall support using a nail or screw.
