FIG No-707-3-5

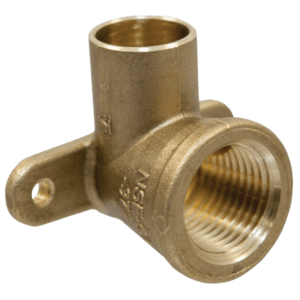

The NIBCO® cast bronze solder pressure 90-degree drop elbow is used in residential and commercial plumbing applications.

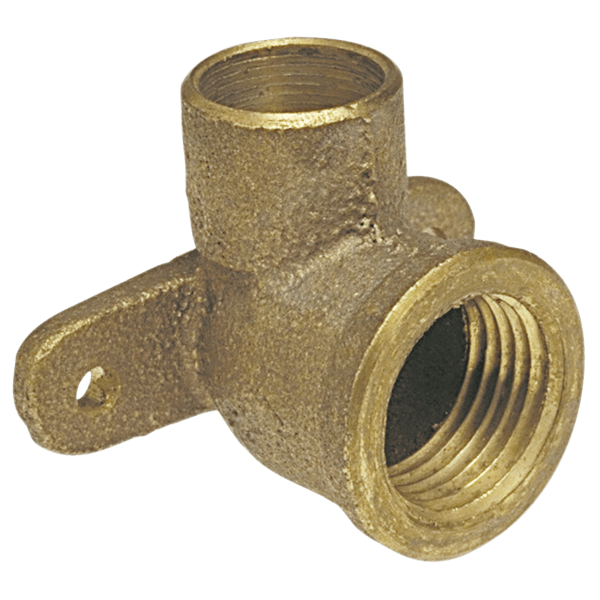

NIBCO 90° Drop Elbow C x F – Cast-FIG No-707-3-5
- Dezincification resistant
- Use in U.S. drinking water applications is prohibited after January 3, 2014
- ASTM B584 Alloy C84400
- Material and workmanship per ASME B16.18
