FIG No-707-5-LF

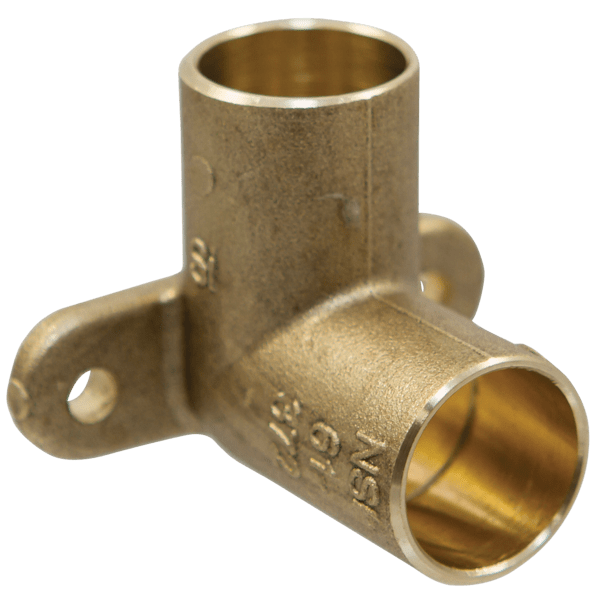

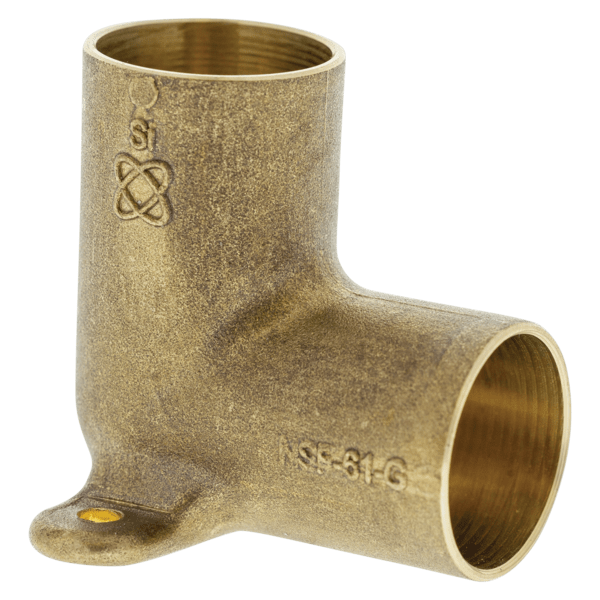

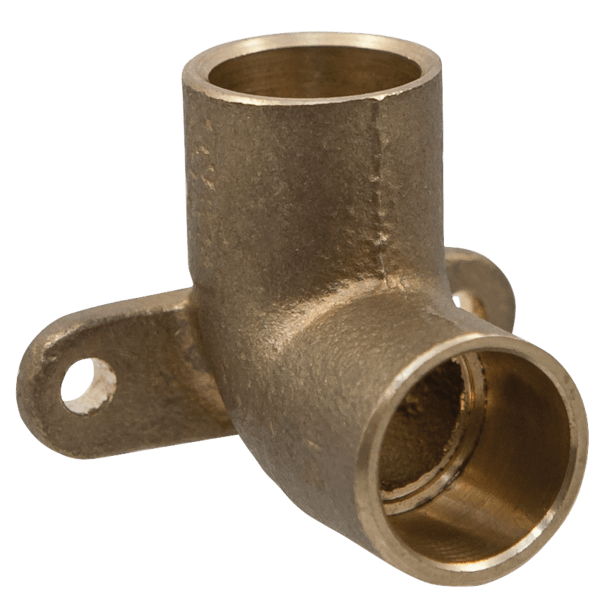

The NIBCO® lead-free* bronze solder pressure 90-degree drop elbow is used in residential and commercial plumbing applications.
NIBCO 90° Drop Elbow C x C – Performance Bronze-FIG No-707-5-LF
- Lead-free
- Dezincification resistant
- Silicon Performance Bronze® alloy
- ASME B16.18 design standards
- NSF/ANSI/CAN-61 and 372
