FIG No-4707-5
The NIBCO® CPVC-CTS 90-degree drop ear elbow is made of Flow Guard Gold® CPVC and is ideally suited for hot and cold water pressure distribution systems in residential and commercial applications.

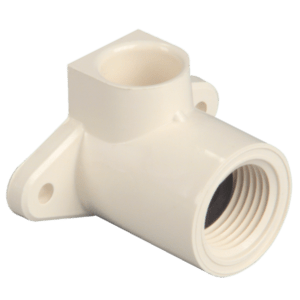

NIBCO 90° Drop Ear Elbow Slip x Slip – CPVC-CTS-FIG No-4707-5
- Maximum service temperature 180°F
- Not for use with compressed air or other gases
- ASTM
- ASTM D
- NSF U.P. Certified
- NSF/ANSI
